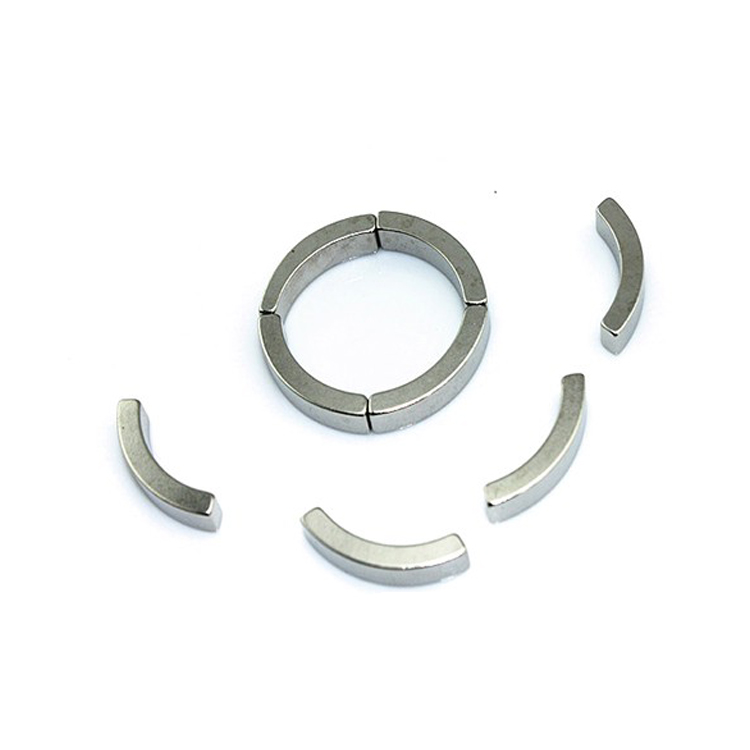

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Product Categories

Mianyang Henshin Magnetic Material Co., Ltd.

Contact Now

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Name: Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance
Brand: HSMAG
Price: 1 USD

China Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance wholesale

Brand Name : HSMAG

Model Number : Sm2Co17

Certification : ISO9001

Place of Origin : Mianyang, China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS 15Days

Delivery Time : 30 work days

Packaging Details : Cartons, sheet metal shielding packaging

Orientation : Thickness or according to your needs

Composite : SmCo Magnet,

Max Working Temperature : 350℃

Customization : Customized logo(Min. Order: 20000 pieces)

Processing Service : Bending, Welding, Decoiling, Cutting, Punching, Moulding

Tolerance : +/-0.1MM, +/-0.1MM +/-0.05MM

More Shipping : Support Express · Sea freight · Land freight · Air freight

Sample : Available

Size : Customized Size

Material : Samrium and Cobalt

Application : Motor

Contact Now

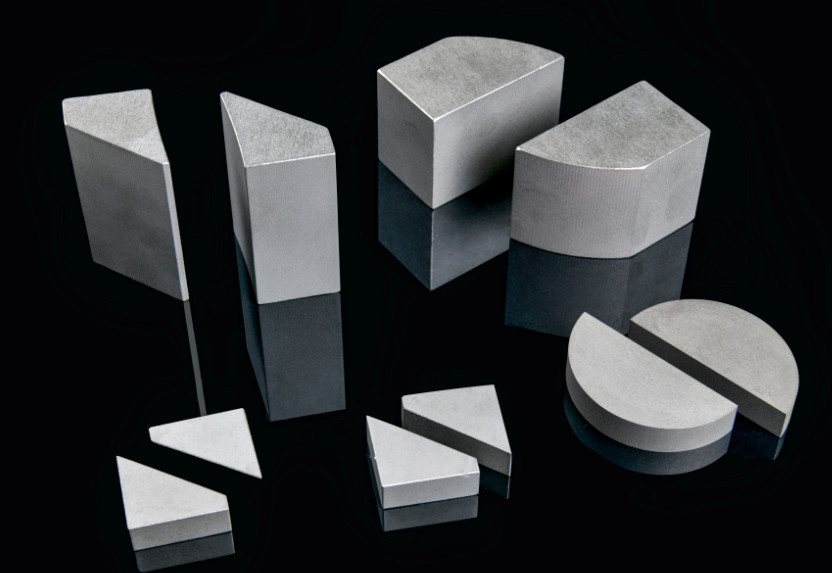

Permanent Sintered Samarium Cobalt Sm1co5 Sm2co17 Block Magnet For Rotors Motors Etc

The Main Products

SmCo (Samarium Cobalt) permanent magnet

SmCo magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields.

And it can be produced in different shapes(round, square, ring, tile, bread), different properties

(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm)

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Characteristics of samarium cobalt permanent magnet

1. Samarium cobalt permanent magnet has high magnetic energy product and high coercivity. Its magnetic property is better than Alnickel-cobalt permanent magnet and ferrite permanent magnet, the magnetic energy product can be up to 239kJ /m3(30MGOE), is 3 times of Alnickel-cobalt permanent magnet, ferrite permanent magnet (Y40) 8 times. Therefore, the permanent magnet component made by SMCO permanent magnet system is small in size, light in weight and stable in performance, which can be used in electroacoustic telecommunication equipment.

2. Sm cobalt permanent magnet Curie has high temperature and small temperature coefficient, which can be used at 300℃.

3. Samarium cobalt has high permanent magnet hardness, high brittleness, low bending strength, tensile strength and compressive strength, and is not suitable for use as structural components.

4. The main component of samarium cobalt permanent magnet is cobalt metal (CO ≥99.95%), so it is expensive.

Products Description

1:5 SmCo Magnet

SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

2:17 SmCo Magnet

SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

Product Name	SmCo Magnet
Material	SmCo Magnet (Sm2Co17, SmCo5)
Normal size range	W=3-130mm,H=1.5-100mm,L=1-130mm
Biggest size	According to your needs
Smallest size	According to your needs
Note	For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Froperties of SmC0 Magnets

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Dimensions anf Toleranfces

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Company Profile

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Our Certificates

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Factory Tour

Sm1Co5 Sm2Co17 DC Motor Permanent Magnet Rotor 350C High Heat Resistance

Packaging Shipping
