Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

Name: Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm
Brand: HSMAG
Price: 1 USD

China Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm wholesale

Brand Name : HSMAG

Model Number : Sm2Co17

Certification : ITAF16949 ISO9001

Place of Origin : Mianyang, China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS 15Days

Delivery Time : 30 work days

Packaging Details : Cartons, sheet metal shielding packaging

Orientation : Thickness or according to your needs

Composite : Smco Magnet

Grade : SmCo Magnet, CAN BE CUSOTOMIZED

Max Working Temperature : 350℃

Customization : Customized logo(Min. Order: 20000 pieces)

Processing Service : Bending, Welding, Decoiling, Cutting, Punching, Moulding

Tolerance : +/-0.1MM, +/-0.1MM

Contact Now

Magnet Diameter 15mm,Ready To Ship, Countersunk Magnet Smco Magnets

Products Description

SmCo1:5

SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

SmCo2:17

SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃. Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

Core Technologies
● Composition Controlling Technologies
● Powder Controlling Technologies
● Mold Design Technologies
● Crystal Particles Ailgnment Technologies
● Highly Accurate High pressure Molding Technologies
● Calcinations Technology in Ultra Vacuum and High Purity Atmosphere
● Precision Machining Technologies
● Surface Treatment Technologies
● Quality Management and Magnetic Field Analysis Technologies
● Magnetization Technologies
● Applied Magnetic Technologies

Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

  	 			  			Raw Material Ratio 			Energy Density 			ReversibleTemp.coefficient
 			SmCo5 			Sm:Co=1:5 			25MGOe 			- 0.05% / ℃
 			Sm2Co17 			Sm:Co=2:17 			32 MGOe 			- 0.03% / ℃.


Samarium cobalt magnets can work at a high temperature of 350 ° C, and have the advantages of high magnetic properties, excellent temperature characteristics and corrosion resistance, and are widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors and other fields.

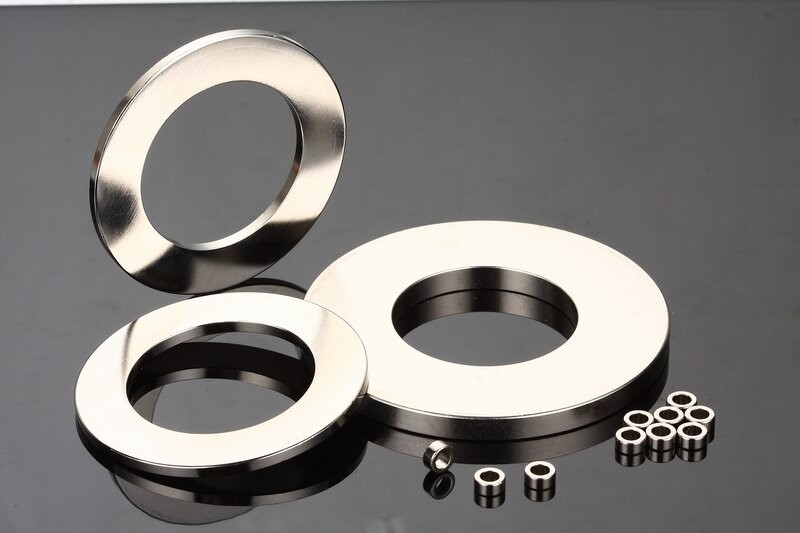

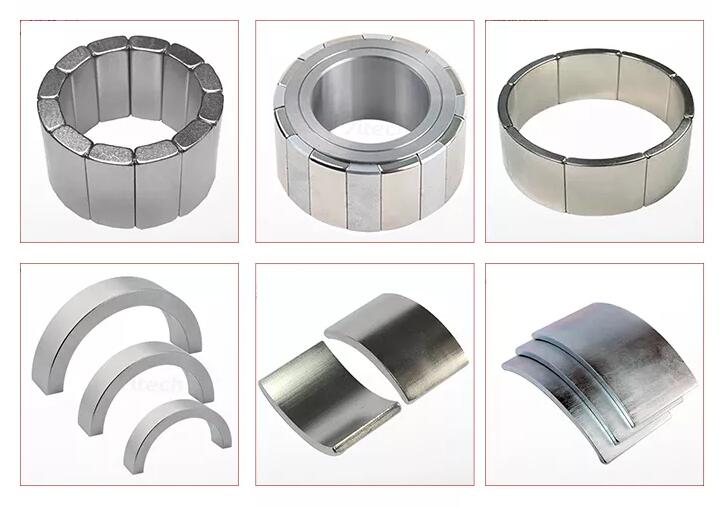

This magnet can be made in different shapes (round, square, ring, tile, bread) Our company accepts custom shapes and sizes from customers.


Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

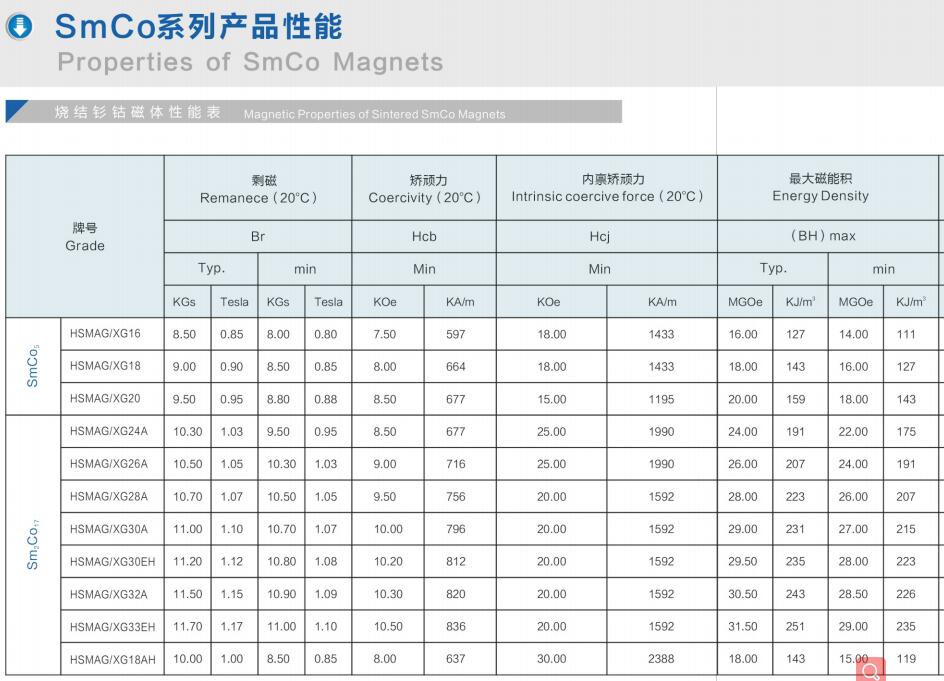

Froperties of SmC0 Magnets

Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

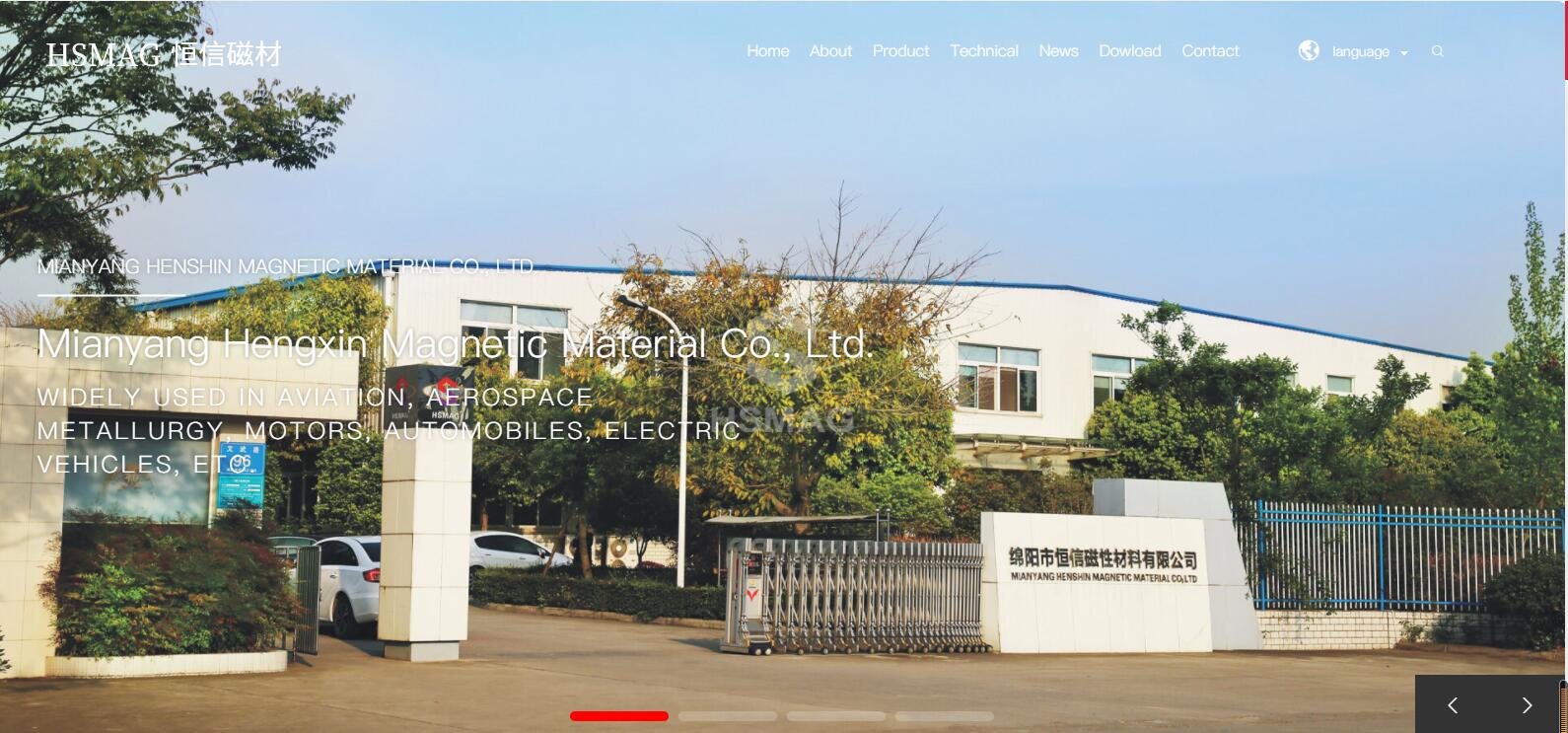

Company Profile

Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.

Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

Our Certificates

Erosion Proof Countersunk Samariun Cobalt SmCo Sintered Magnet 15mm

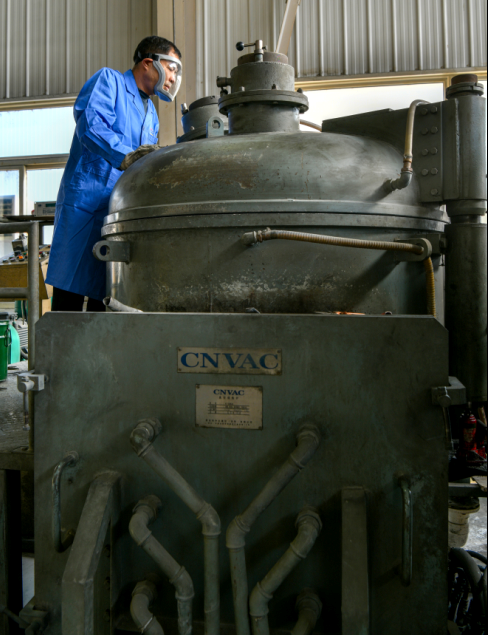

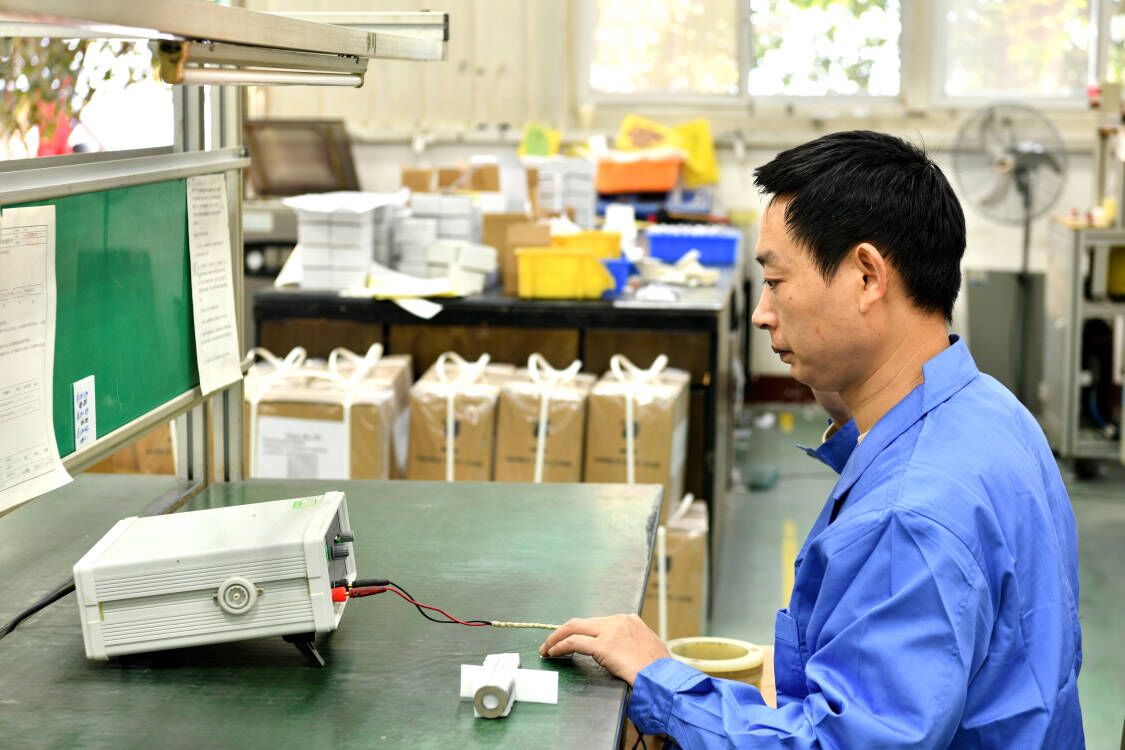

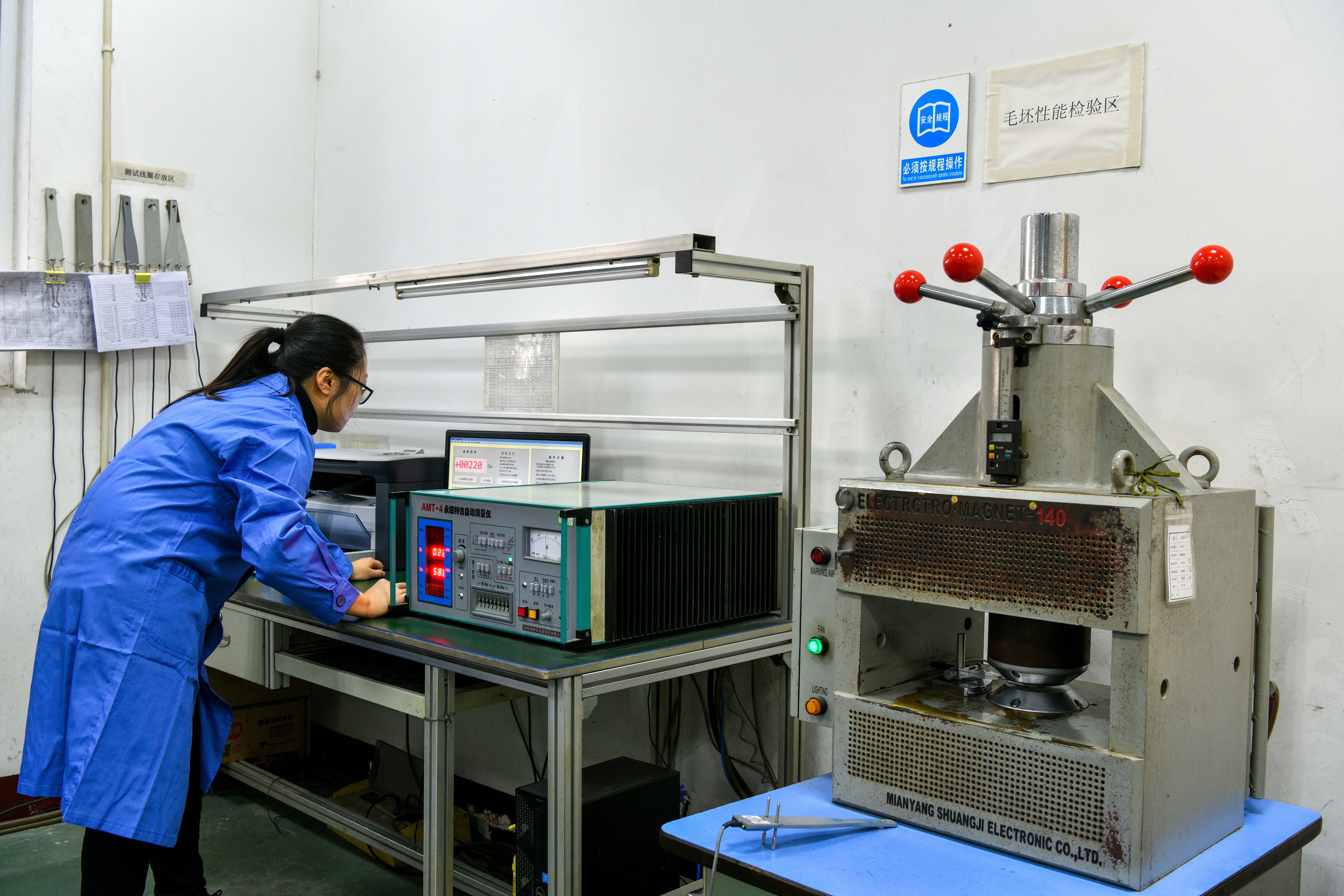

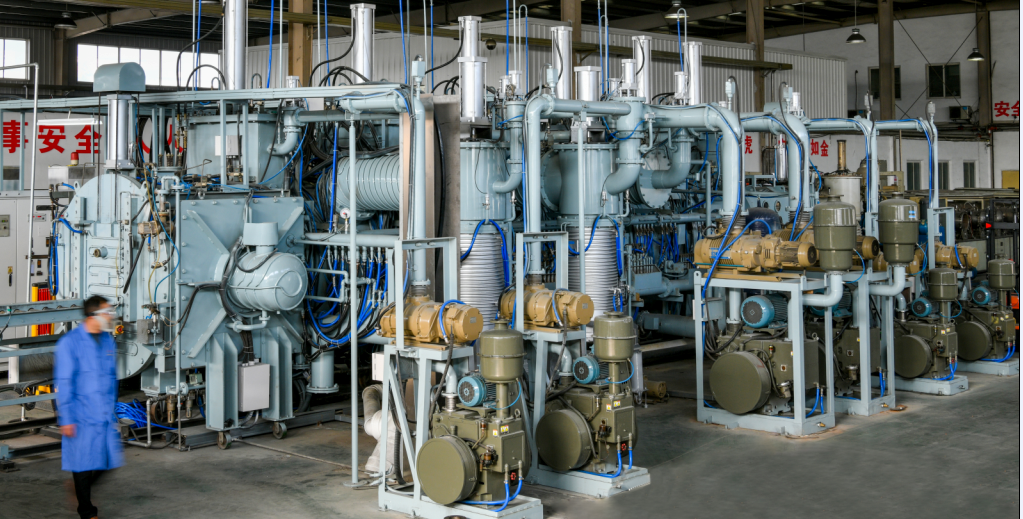

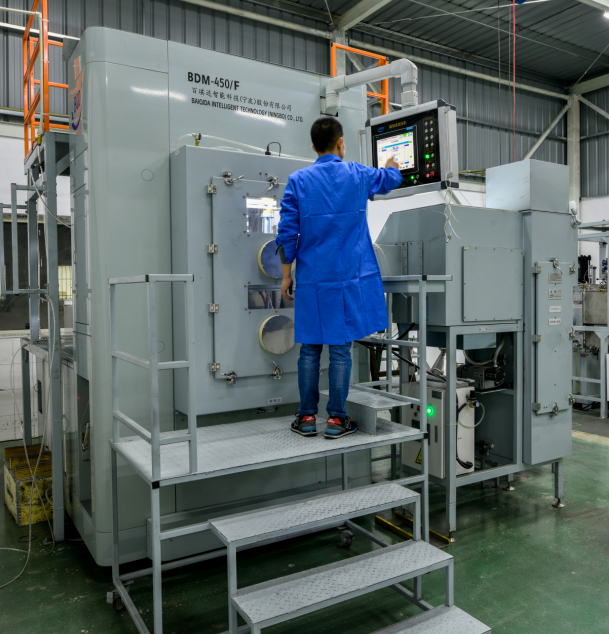

Factory Tour

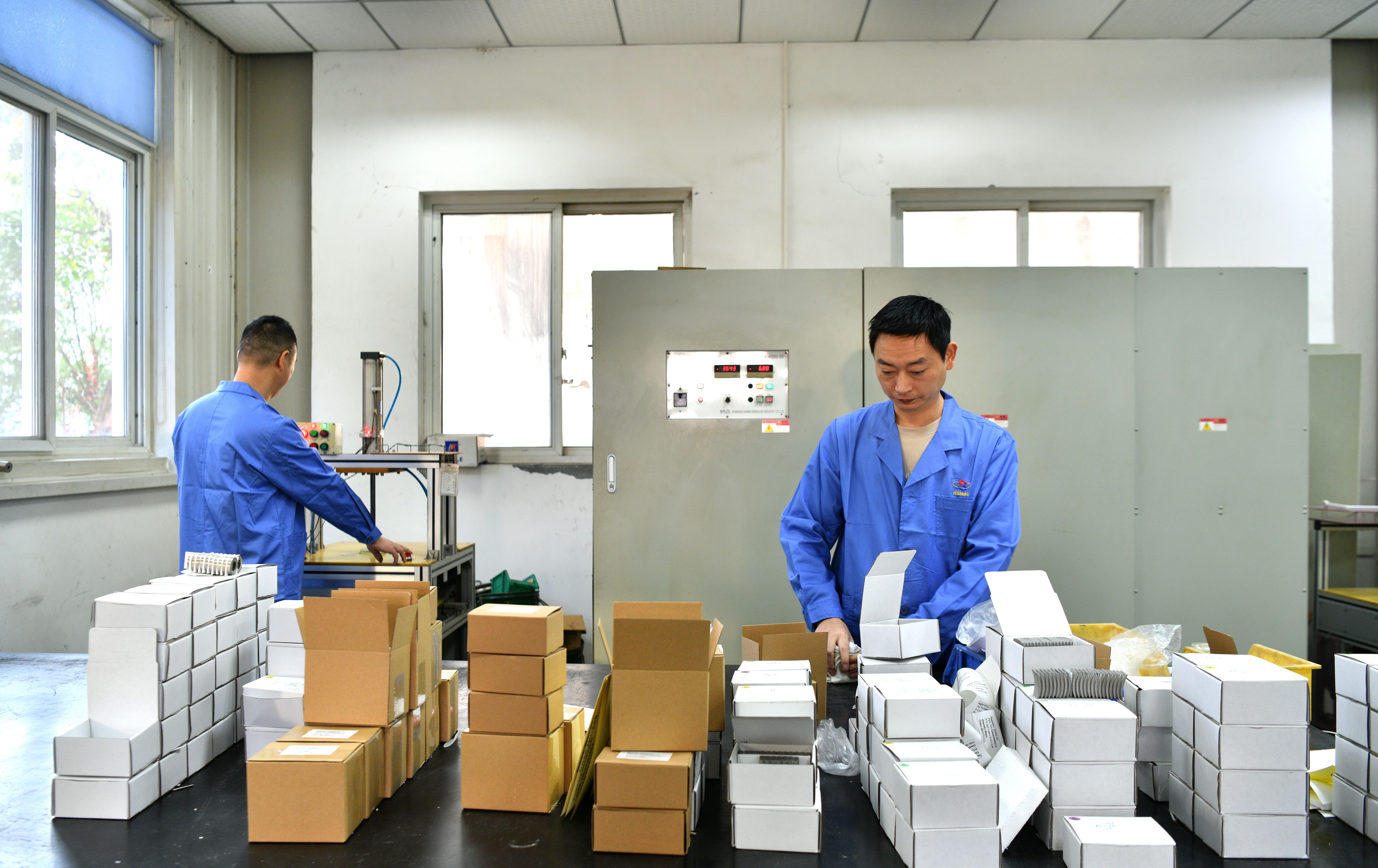

Packaging Shipping
